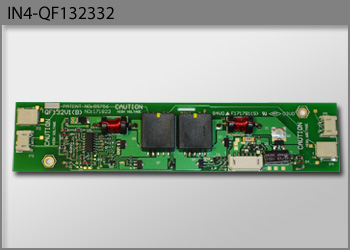

4 CCFLs LCD Inverter - IN4-QF132332

Splendi inc. offers a complete product line of LCD inverters -1 ccfl, 2 ccfls, 4 ccfls, and 6 ccfls. The IN4 series DC To AC inverters is designed with 4 ccfls which is able to drive 4-tube backlight. With the advantages of low noise and high frequency, and as a low profile and light weight switching power supply, it’s compatible to the LCD panels of AUO, CMO, Kyocera, Samsung, Sharp, NEC, Mitsubishi and LG…etc.


- Applicable to 4 tubes backlight
- Constant current output
- Possesses open load protection when lamp is open
- No load–output auto stop
- Meet TCO 99
20.1” LCD Panel:

AUO-M201SP01
20.5” LCD Panel:

AUO-M215HW01

Operating Condition

Item

Symbol

Condition

Min.

Max.

Unit

Input Voltage

Vin

10

-

V

Operating Temperature

Top

Ha=90%RH

0

65

Storage Temperature

Tstg

Ha=95%RH

-10

80

Operating Humidity

Hop

Ta=0 ~ 55 ℃

20

90

%RH

Storage Humidity

Hstg

Ta=20 ~ 80 ℃

-

95

%RH


Operating Characteristic

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Input Voltage

Vin

GND=0V

10.8

12

13.2

V

Input Current
(Low Brightness)

IinL

Vin=Typ. ±1% ON
VR=Min.  (Iout=Min.)

700

850

970

mA
CV=5V

Input Current
(High Brightness)

IinH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

1800

1950

2150

mA
CV=0.2V

Lamp Current
(Low Brightness)

IoutL

Vin=Typ. ±1% ON
VR=Min. (Iout=Min.)

1.3

1.4

2.2

mA
CV=5V

Lamp Current
(High Brightness)

IoutH

Vin=Typ. ±1% ON
VR=Max. (Iout=Max.)

6

6.5

7.5

mA
CV=0.2V

Working Frequency





40

43

48

KHz

Dimming



Tube Current

>2.5:1

-

-



Brightness Control



Connection of Voltage

5

-

0

V

Output Voltage



CCFT Current= 5mA

-

760

-

V


Connector Socket - (CN1) Input Connector

Item

Symbol

Description

1

Vin

DC+12V

2

Vin

DC+12V

3

GND

Ground

4

Brightness

Digital Brightness Control

5

GND

Ground

6

Control

ON/OFF Control ON=+5V OFF=0V

Connector Socket - (CN2 ~CN5) Output Connector

Pin No.

Symbol

Condition

1

Output

Lamp High Voltage

2

Output

Lamp Low Voltage


Connector Socket - Connector Model No. & Brand

Pin No.

Symbol

Condition

CN1

S6B-PH-SM3

JST

CN2, CN3
SM02B
JST

CN4, CN5

SM02B

JST


Custom input timing, panel timing, OSD menu, splash screen, onformal coatings, layout dimension etc…
